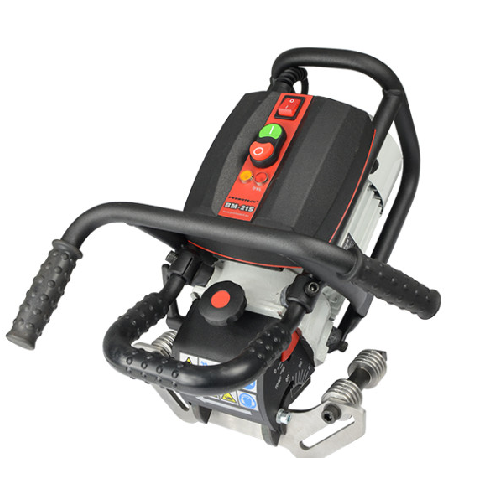

BM-21S Stainless Steel Plate & Pipe Beveler
BM-21S is designed for milling edges of plates and pipes made of stainless steel. The most important features include a low-speed motor suitable for machining stainless steel, and a guide plate with guide rolls made of stainless steel. Unlike flame or plasma cut weld preparation, BM21-S produces no heat-affected zone or distortion of the workpiece.
Key features
The machine enables bevel sheet edges as well as pipe edges with diameters from 150 mm (6’’) to 300 mm (12’’) in the 0–60° range with maximum bevel width of 21 mm (13/16’’). When equipped with an optional guide, BM-21S allows working on pipes with diameters over 300 mm (12’’).
See also this product:- BM-21 Industrial Plate & Pipe Beveler
Yes I'm Interested- low speed motor suitable for machining stainless steel
- guide plate with guide rolls made of stainless steel
- up to 21 mm bevel width at 45°
- beveling angles adjusted continuously between 0 to 60°
- new single milling head equipped with 10 square inserts makes machining process far more efficient and much less operator fatiguing
- fast and easy inserts exchange with no need for special adjustment
- easy setting of bevel angle and bevel width
- vibration insulation protects both the operator and electronics against vibration
- one universal guide plate for beveling both plates and pipes
BM-21S TECHNICAL SPECIFICATION
| Power Supply | 230V AC / 50 Hz or 115 V AC / 60 Hz |
| Induction motor | with increased start-up current |
| Power | 1600 W (for 50 Hz); 1800 W (for 60 Hz) |
| Spindle speed | 1360–1630 rpm (at 230 V) 1300–1560 rpm (at 115 V) |
| Tooling | integrated milling head with 10 square TCT inserts |
| Beveling angle | 0-60° with continuous angle adjustment |
| Max bevel width | 21 mm (13/16’’) |
| Weight Approx. | 23 kg (51 lbs) |
| Product Code 220–240 V, 50–60 Hz | UKS-0505-10-20-00-0 |
| Product Code 110–120 V, 50–60 Hz | UKS-0505-10-10-00-0 |
