Cir-Cut II
Description

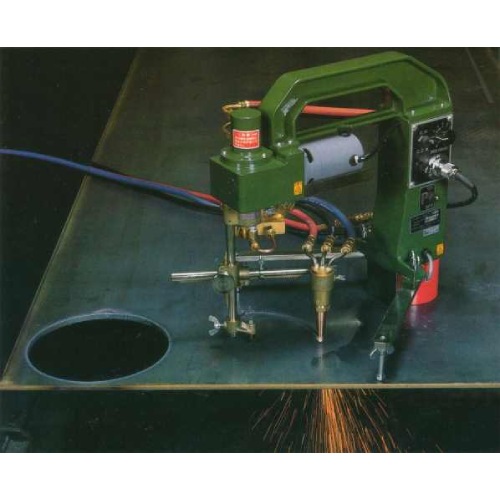

Cir-Cut II is a portable automatic oxy-fuel circle-cutting machine specially designed for circle cutting with or without a bevel, on even surfaces, in horizontal and vertical positions.
A powerful electromagnet simplifies cutting in any position. The rotating gas manifold prevents tangling hoses and a reset of the machine to its home position.
Features
- Low weight (simple operation and transport)
- Easy positioning for cutting by the use of a centering pin (circle diameter 40- 200 mm)
- Bevel cuts till 45° possible
- No tangling hoses due to rotating gas manifold
See also this product:- IK-93 HAWK
Yes I'm InterestedScope of delivery
- Cutting machine Cir-Cut II
- Cutting nozzles (5-30 mm material thickness)
- Connecting lead (5 m)
- Tool set
- Operation instructions
Technical specifications
| Cir-Cut II | |
|---|---|
| Cutting thickness | 5-50 mm |
| Cutting diameter | 40-200 mm |
| Cutting speed | 0.5-7.5 rpm |
| Type of drive | 15 WDC Moter |
| Type of gas | Acetylene, propane |
| Weight | 11.0 kg |
