PRO-36 Drills for Special Applications
PRO-36 MS
The machine with a swivel magnetic base is dedicated to operating with convex (min diameter – 300 mm) and concave (min diameter 1000 mm) materials. Four individual swivel magnets adjust to the surface of detail so the machine does not require perfectly flat material to operate.
Additionally, every magnet is equipped with variable holding force features. This allows easy machine positioning while magnets are partially engaged. The magnetic base does not require electricity thus assuring more safety in power loss situations.
See also this product:- PRO-36 Compact Mag Drill
Yes I'm Interested| Motor speed (under load) | 350 rpm |
| Power | 1020 W |
| Weight | 14 kg (31 lbs) |
| Max milling capacity | 36 mm (1 7/16’’) |
| Max countersinking | 40 mm (1 9/16’’) |
| Stroke | 70 mm (2 3/4’’) |
| Max depth of cut | 35 mm (1 3/8’’) |
| Voltage | 1~ 110–120 V, 50–60 Hz 1~ 220–240 V, 50–60 Hz |
| MFSC (Magnetic Field Shape Control) | – |
| Magnetic base holding force | 612 kgf (6 000 N) |
| Magnetic base dimensions | 243mm × 218 mm × 96 mm 9.57’’ × 8.58’’ × 3.78’’ |
| Minimum workpiece thickness | 5 mm (0.24”) |
| Tool holder | 19 mm (3/4’’) Weldon |
| Product Code (110-120V) | WRT-0440-10-10-05-4 |
| Product Code (220-240V) | WRT-0440-10-20-05-4 |

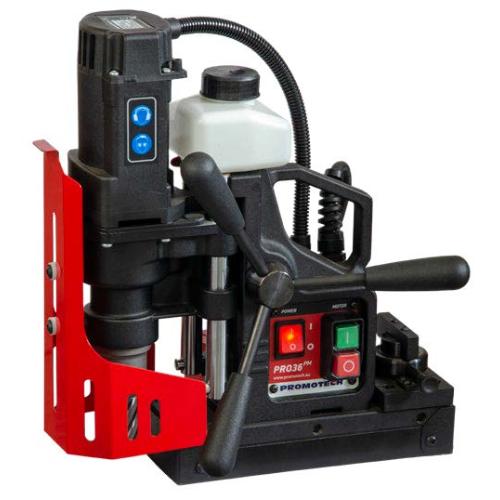

PRO-36 PM
The machine with magnetic base is dedicated to operate with the risk of power loss applications (e.g. drilling in the wall). The magnetic base is equipped with very strong neodymium magnets and does not require electricity to operate. Switchable holding force feature enables easy and precise positioning of the drill, while magnetic base is partially engaged.

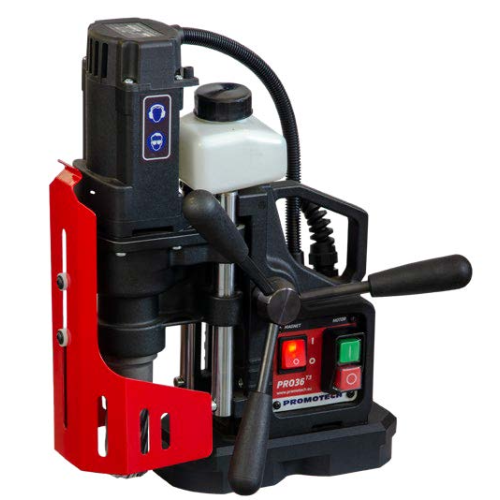

PRO-36 T3
The machine with electromagnetic base is dedicated to operate with steel profiles. Minimum thickness of the wall can be as thin as 3 mm. Unique design allows optimal magnetic field distribution so the holding force is comparable to the regular base placed on material which is twice as thick. It makes it suitable to work on really thin materials.
