SBM-500 Stationary Bevelling Machine

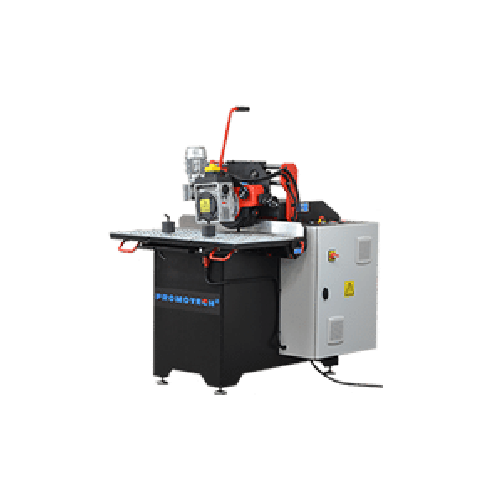

SBM-500 Stationary Bevelling Machine

Stationary beveled for machining straight edges of different size workpieces. Modern design, a number of advanced control systems, and innovative solutions streamline workflow to maximize your production efficiency.

Key features

• very high surface quality
• precise setting of bevel angle from 15 up to 60 degrees and bevel width up to 30 mm
• continuous adjustment of spindle speed and feed rate makes it suitable for different types of steel and aluminum
• high-speed rotary milling head equipped with 10 inserts
• cutting inserts dedicated to various materials
• no heat affected zones or distortion of the workpiece

• easy access to milling head and cutting inserts
• workpiece height up to 100 mm
• powerful 7.500 W motor
• 3D contact wheel control ensures proper workpiece alignment in relation to the milling head
• ergonomic ball roller bench
• swarf drawer
• supplementary tables to ccommodate long workpieces (option)
• pipe beveling attachment for pipes 50-150 mm (2-6”) OD (option)
• plate attachment for narrow workpieces with a minimum width of 30 mm (option)

See also this product:- BM-21S Stainless Steel Plate & Pipe Beveler
